Stapleton Pickups™

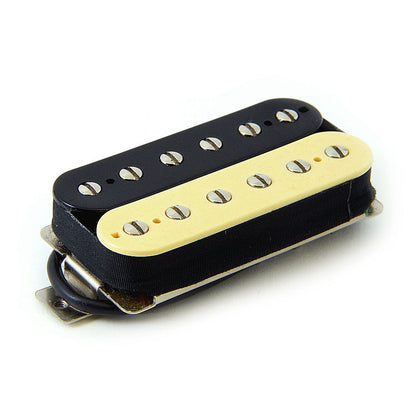

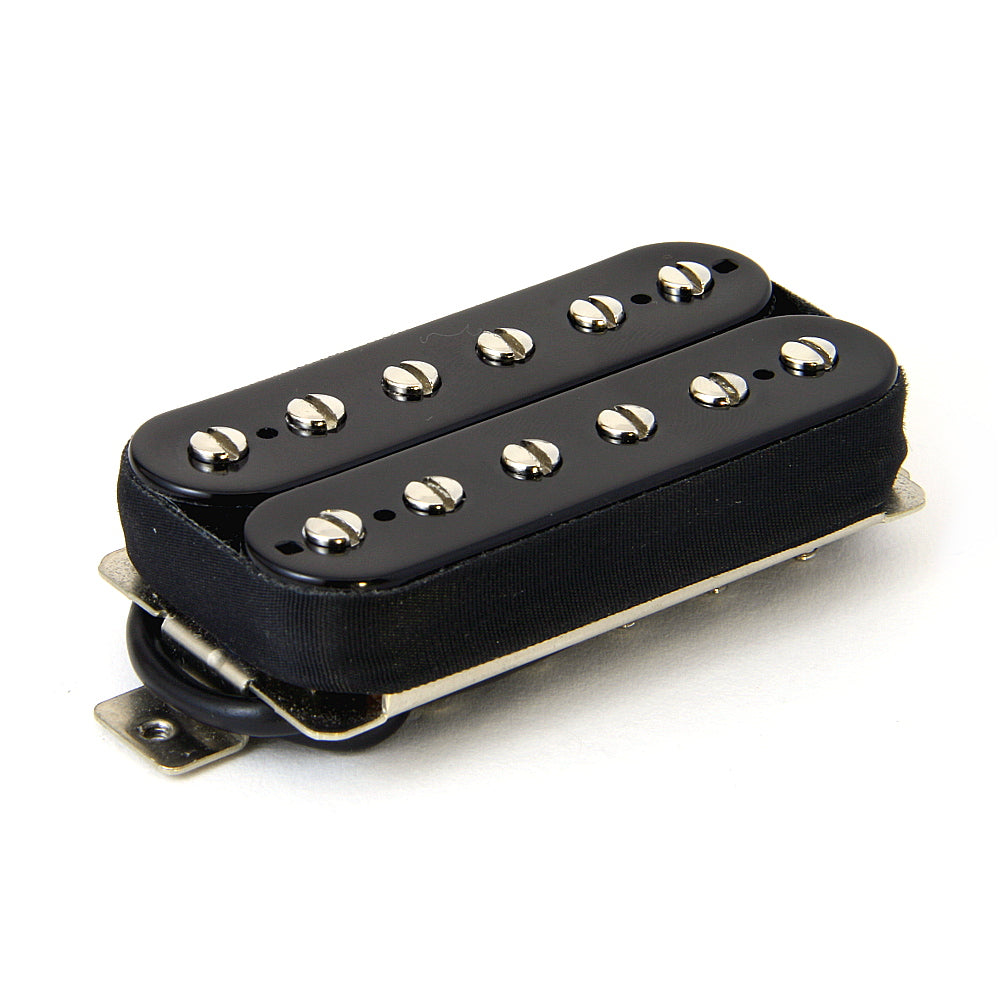

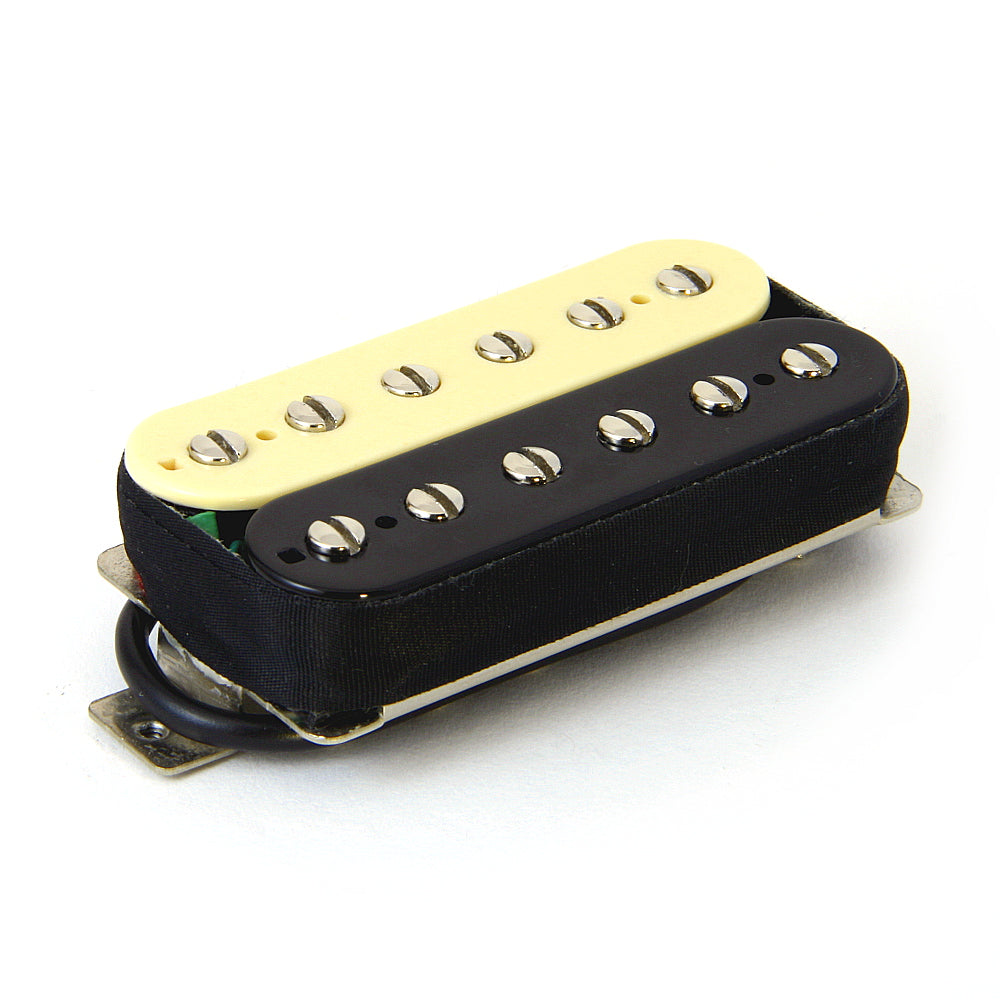

High output handmade humbucker bridge pickup
High output handmade humbucker bridge pickup
Regular price
$159.90 NZD
Regular price
$125.90 NZD
Sale price
$159.90 NZD
Unit price
/
per
Couldn't load pickup availability
Stapleton Guitars® high output, split coil pickup, supporting single coil or humbucker mode.
Output and frequencies of this pickup in the single coil mode is similar to single coil pickups.
In the humbucker mode it creates a rich and high output without high frequencies cuts.
Screw pole-pieces allow to adjust pickup’s height for every single string — that enables you to precisely customise the tone of your guitar.
Specification

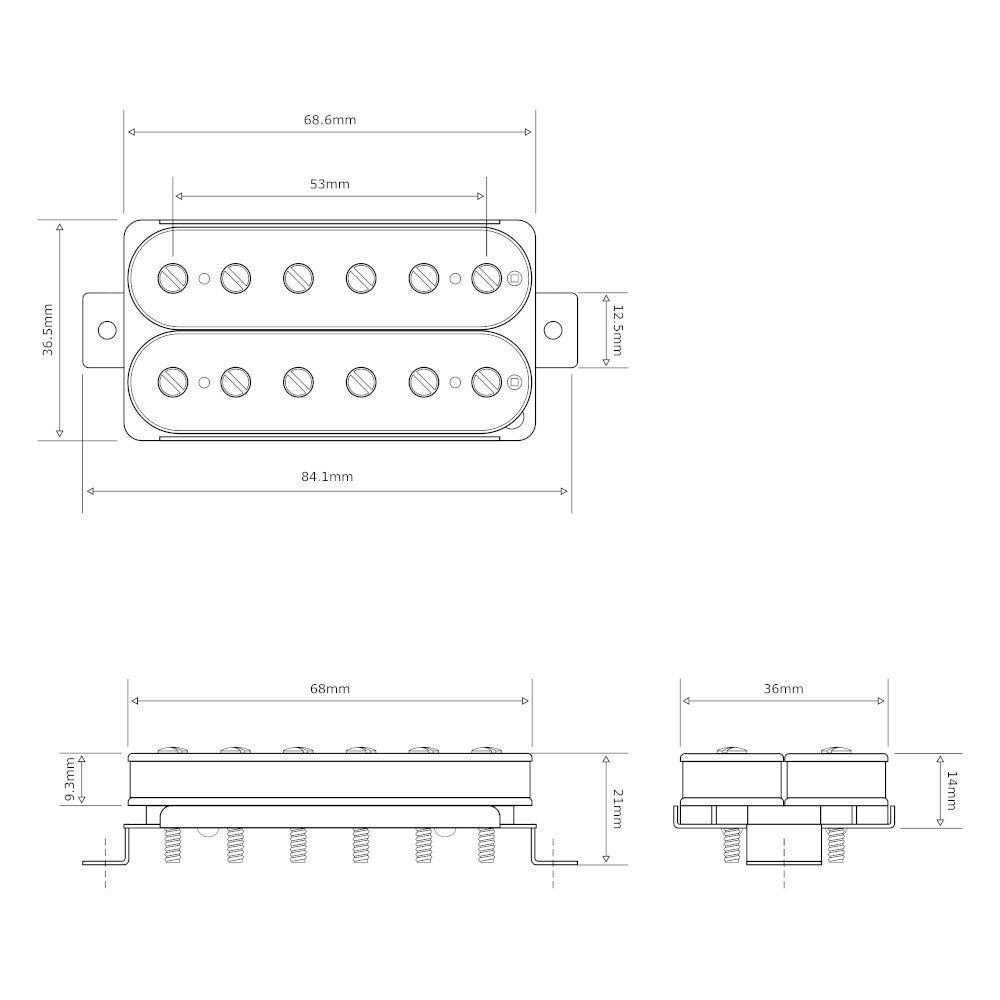

- POLE SPACING: 53mm (2.09")
- DC RESISTANCE SINGLE COIL: ≈ 6.8 kΩ
- DC RESISTANCE HUMBUCKER MODE: ≈ 13.6 kΩ
- INDUCTANCE SINGLE COIL: ≈ 3.8 Henries
- INDUCTANCE HUMBUCKER MODE: ≈ 6.4 Henries
- COIL WIRE: 43-AWG
- WINDING: Scatter Wound
- POTTED: Yes

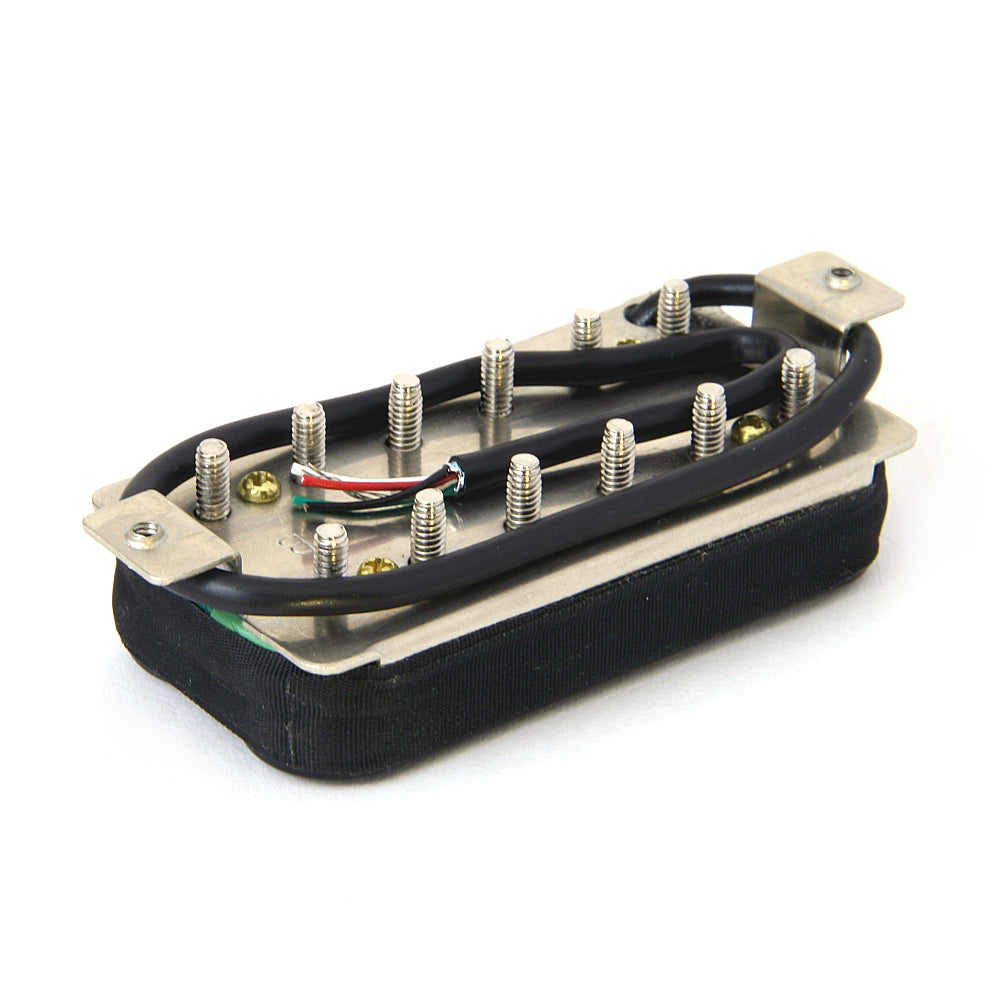

- POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
- BASEPLATE: Short Leg (1/4") Nickel Plated

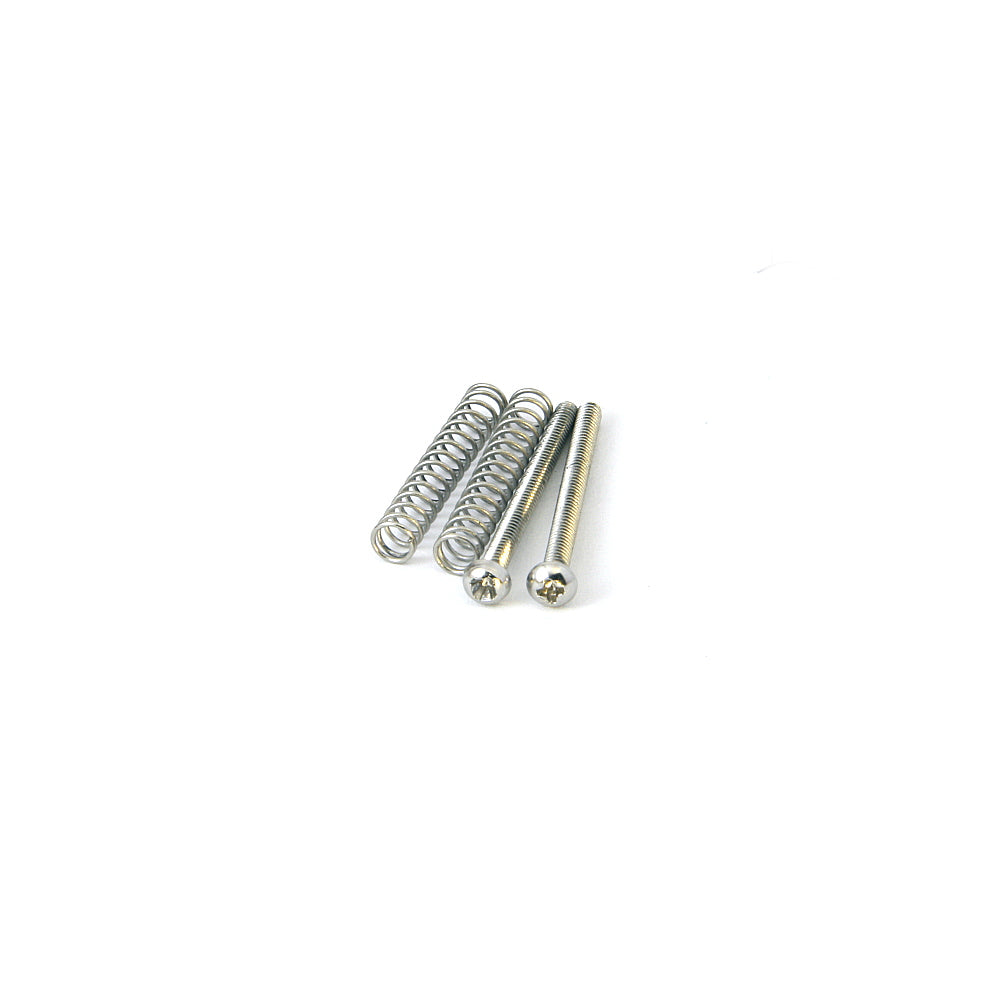

- MOUNTING SCREWS AND SPRINGS: Included (30mm)
- HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)
* DC Resistance and inductance can differ within 5%.

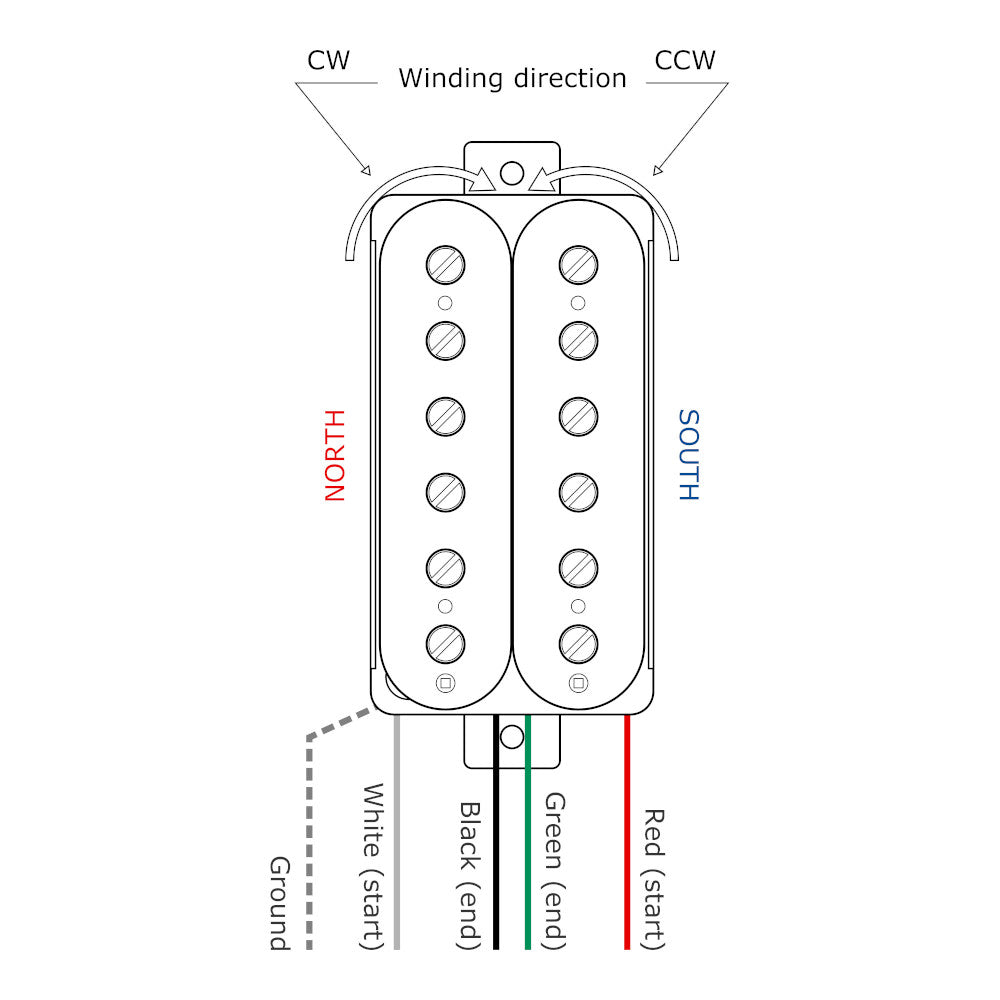

** For series wiring, connect WHITE and GREEN wires.
