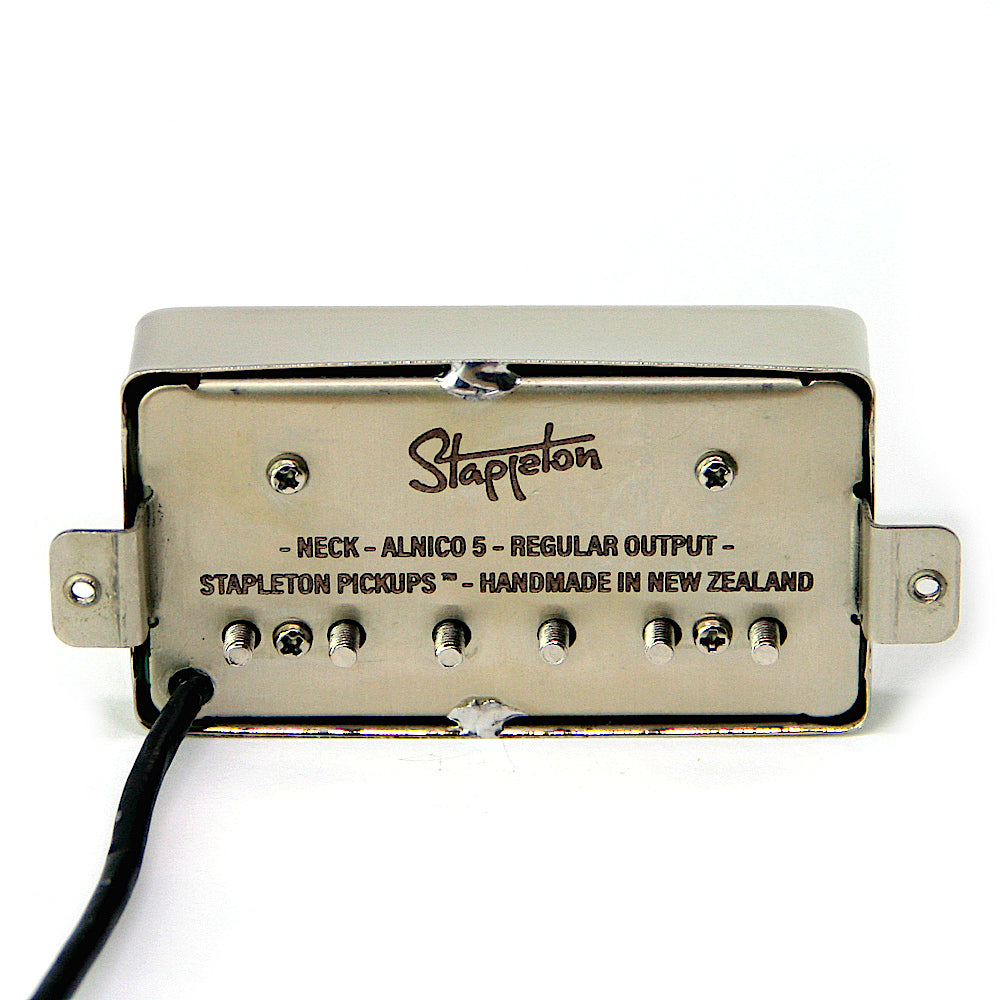

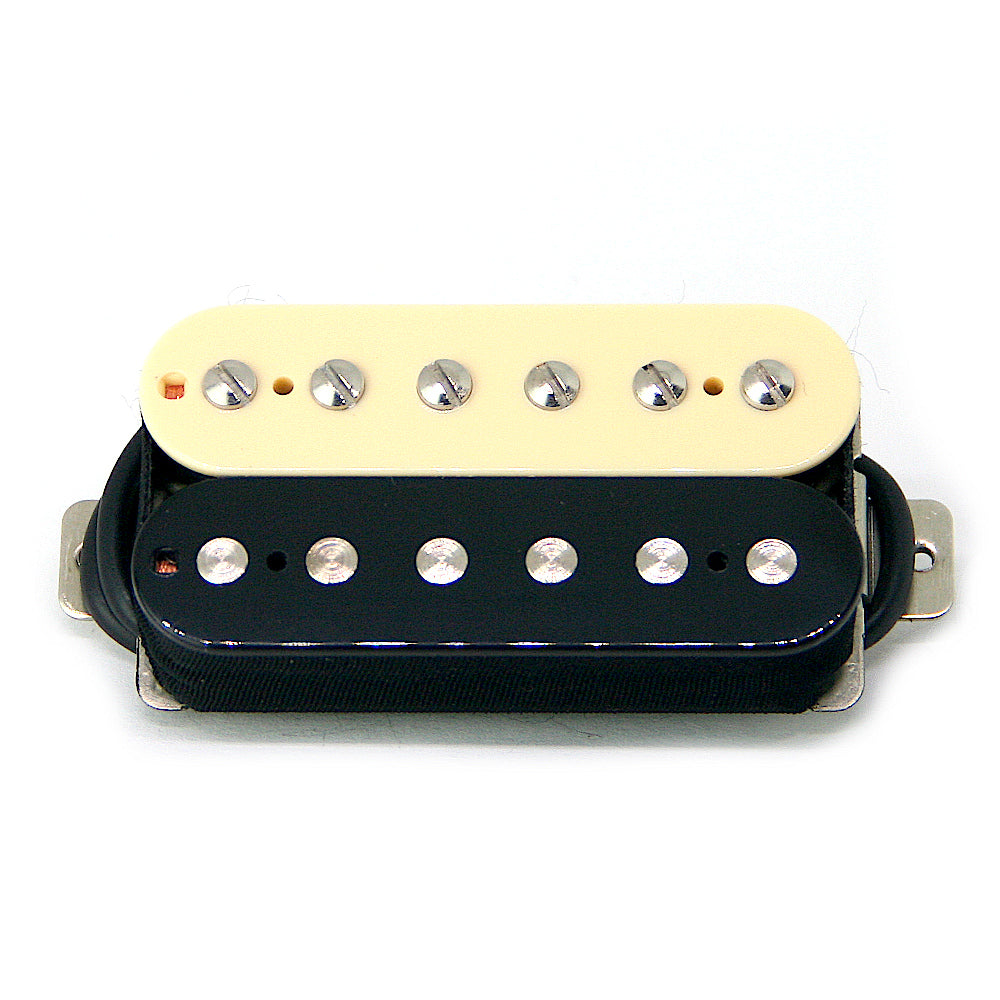

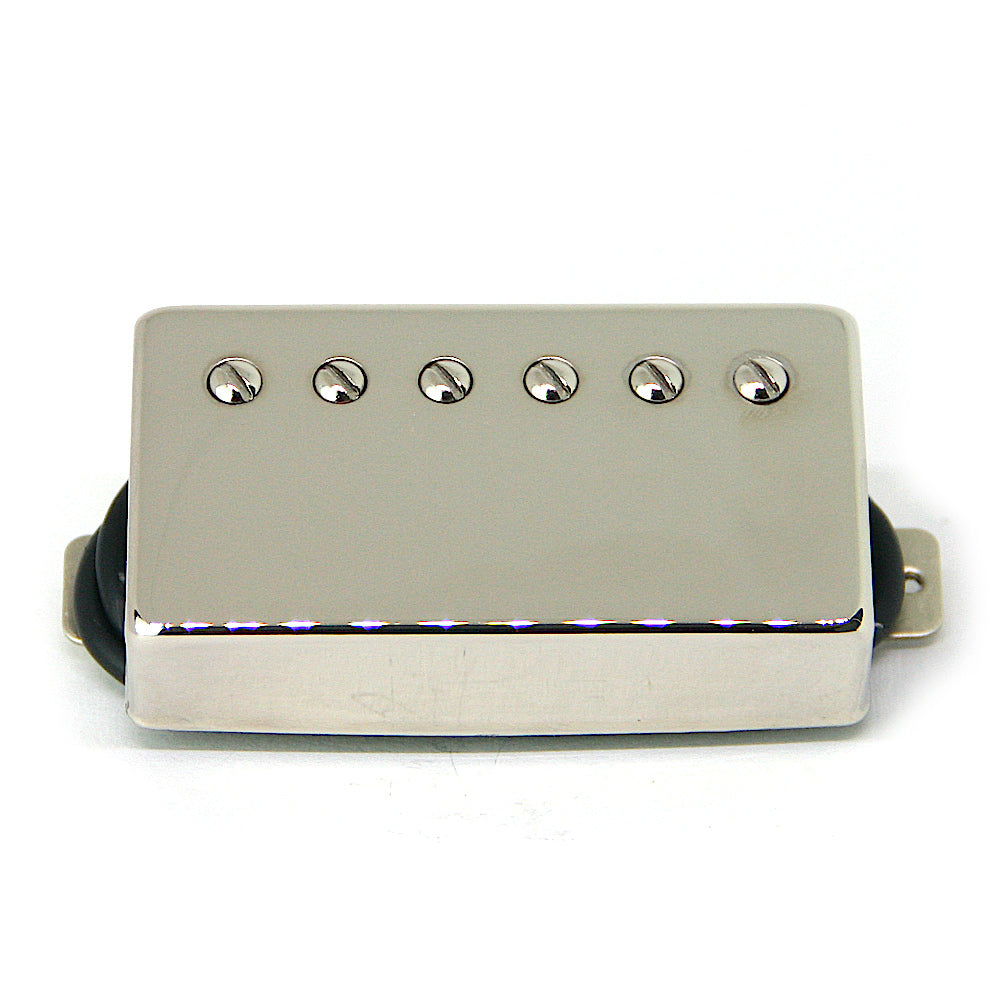

Regular output humbucker neck pickup

Specification

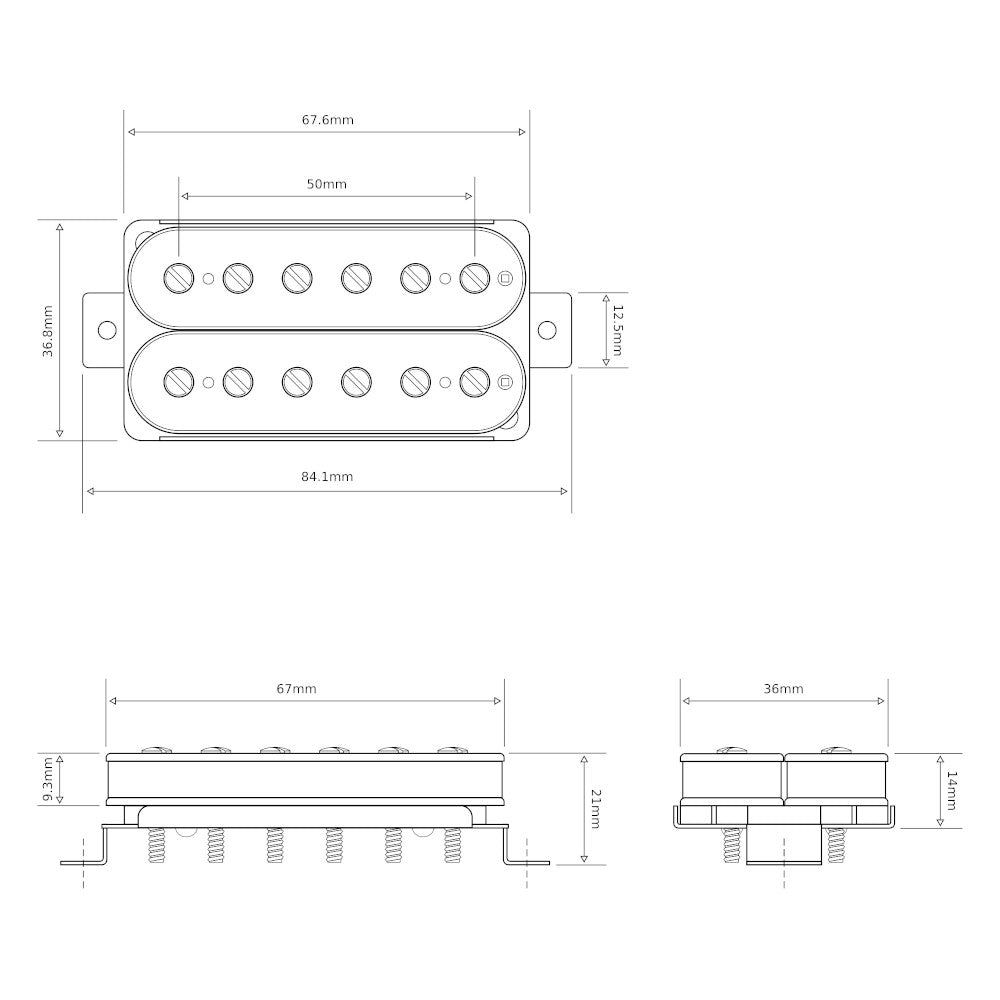

• POLE SPACING: 50mm (1.97")
• DC RESISTANCE: 7.5 kΩ
• INDUCTANCE: 5.4 Henries
• COIL WIRE: 42-AWG Enamel
• WINDING: Scatter Wound
• POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
• POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
• BASEPLATE: Short Leg (1/4") Nickel Plated
• MOUNTING SCREWS AND SPRINGS: Included (30mm)
• HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)

* DC Resistance and inductance can differ within 5%.

** For series wiring, connect WHITE and GREEN wires.
