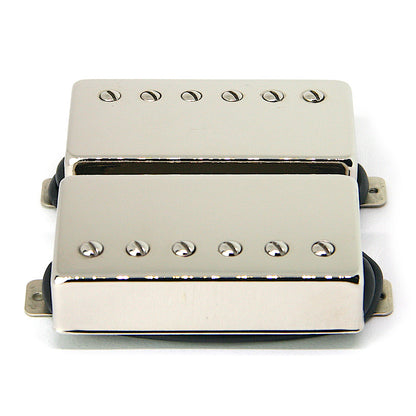

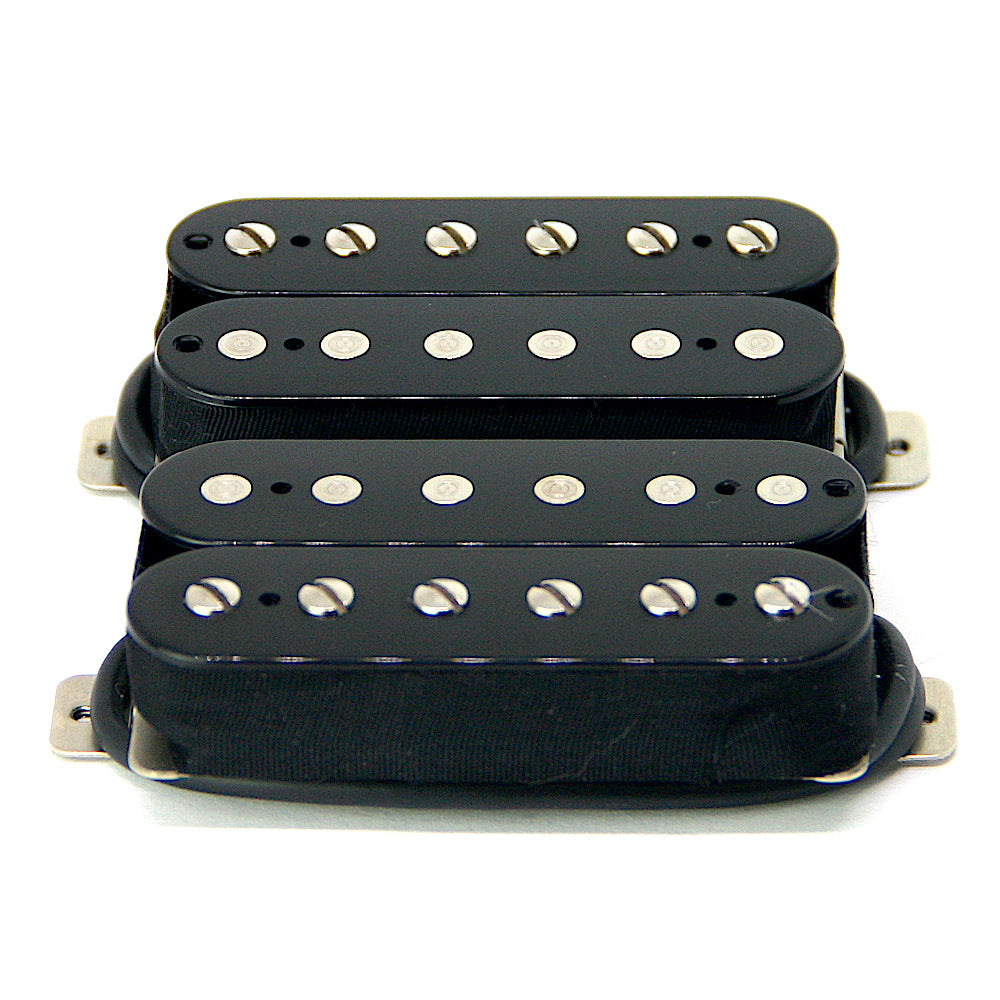

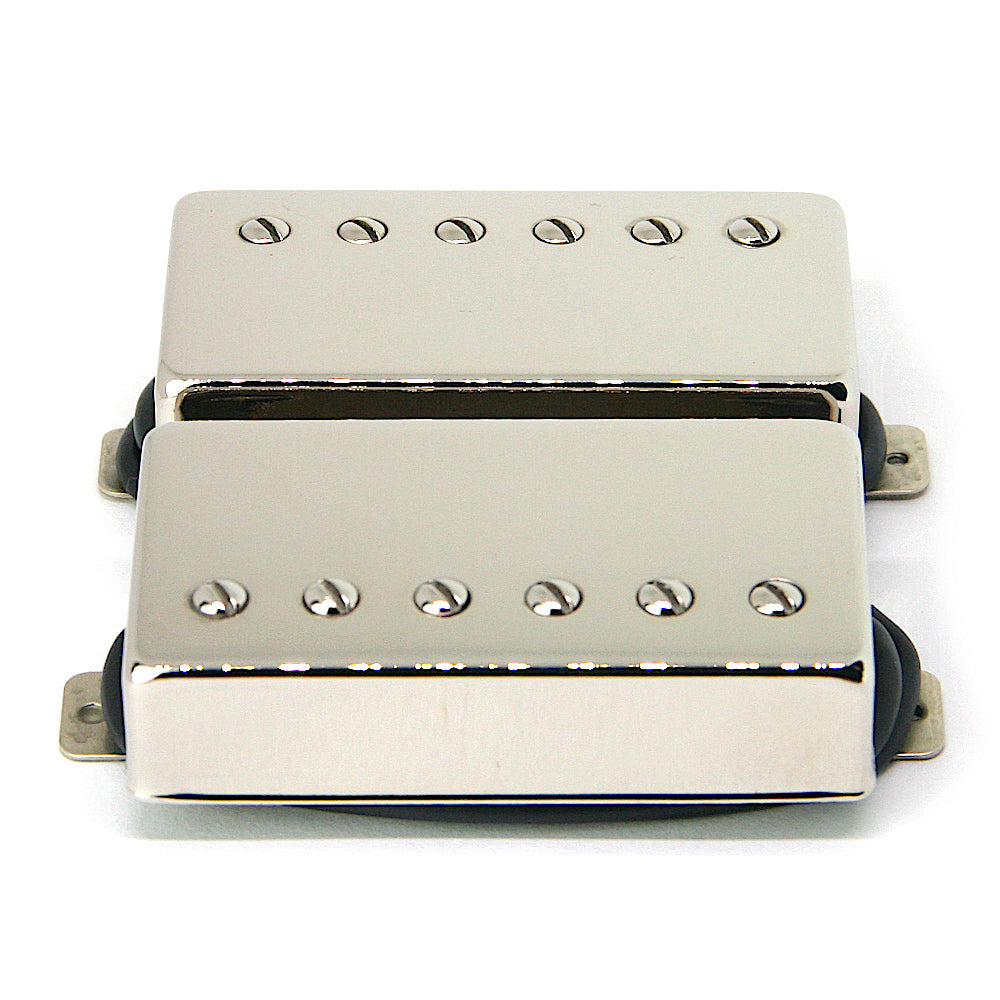

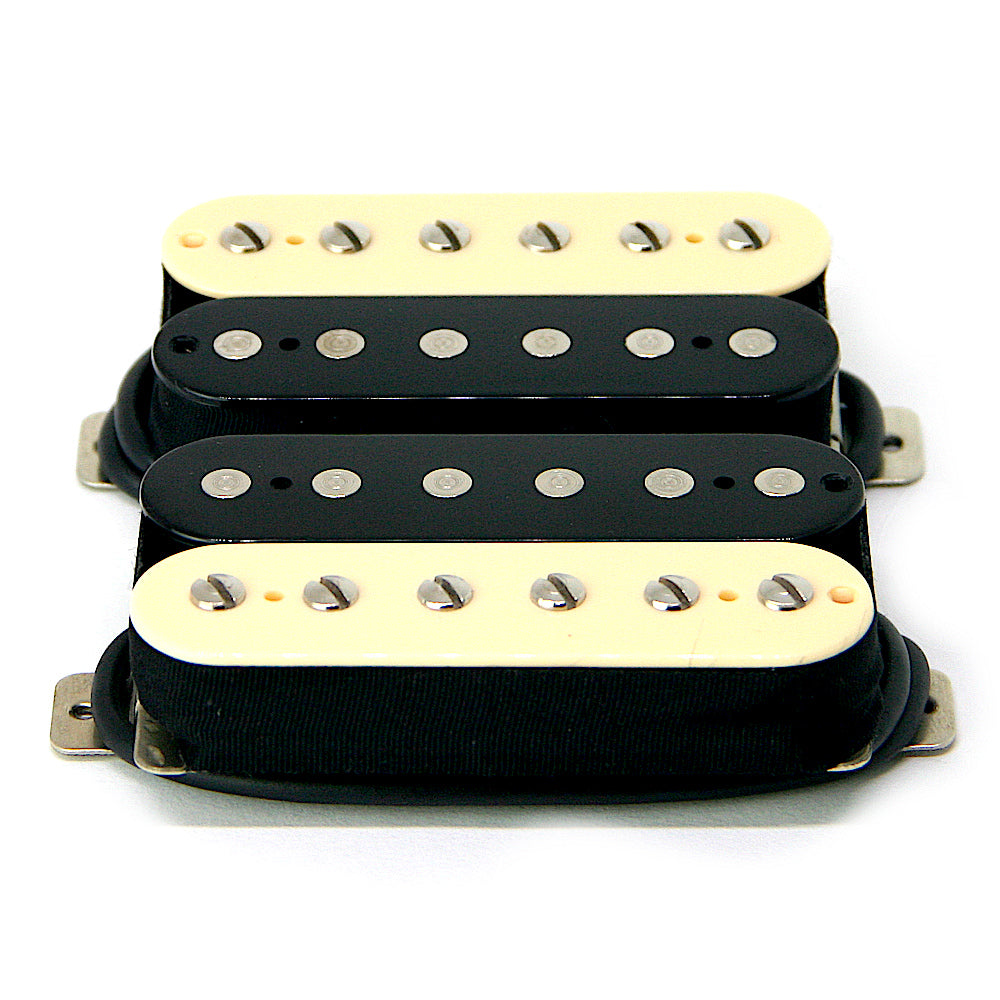

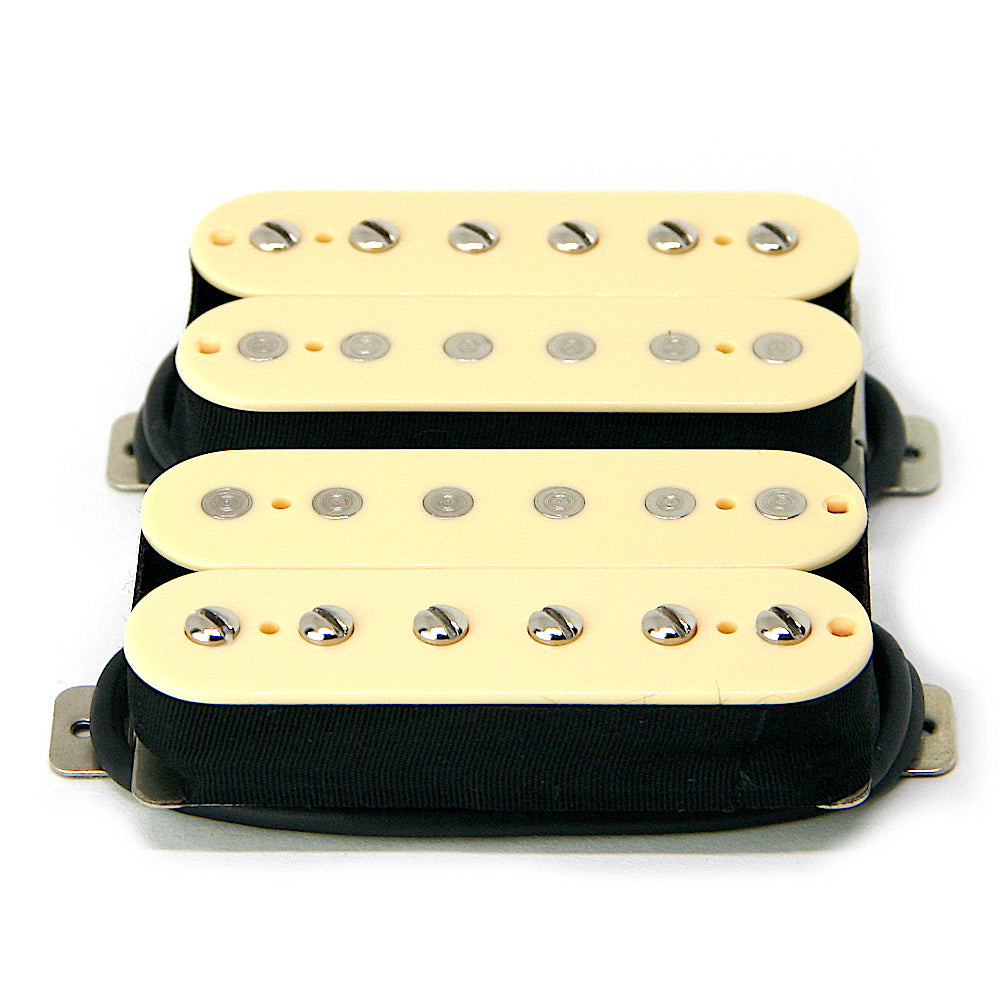

Regular output humbucker pickup set

Specification

• NECK PICKUP POLE SPACING: 50mm (1.97")
• BRIDGE PICKUP POLE SPACING: 52mm (2.09")
• NECK PICKUP RESISTANCE: 7.5 kΩ
• BRIDGE PICKUP RESISTANCE: 8.6 kΩ
• NECK PICKUP INDUCTANCE: 5.4 Henries
• BRIDGE PICKUP INDUCTANCE: 6.4 Henries
• COIL WIRE: 42-AWG Enamel
• WINDING: Scatter Wound
• POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
• POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
• BASEPLATE: Short Leg (1/4") Nickel Plated

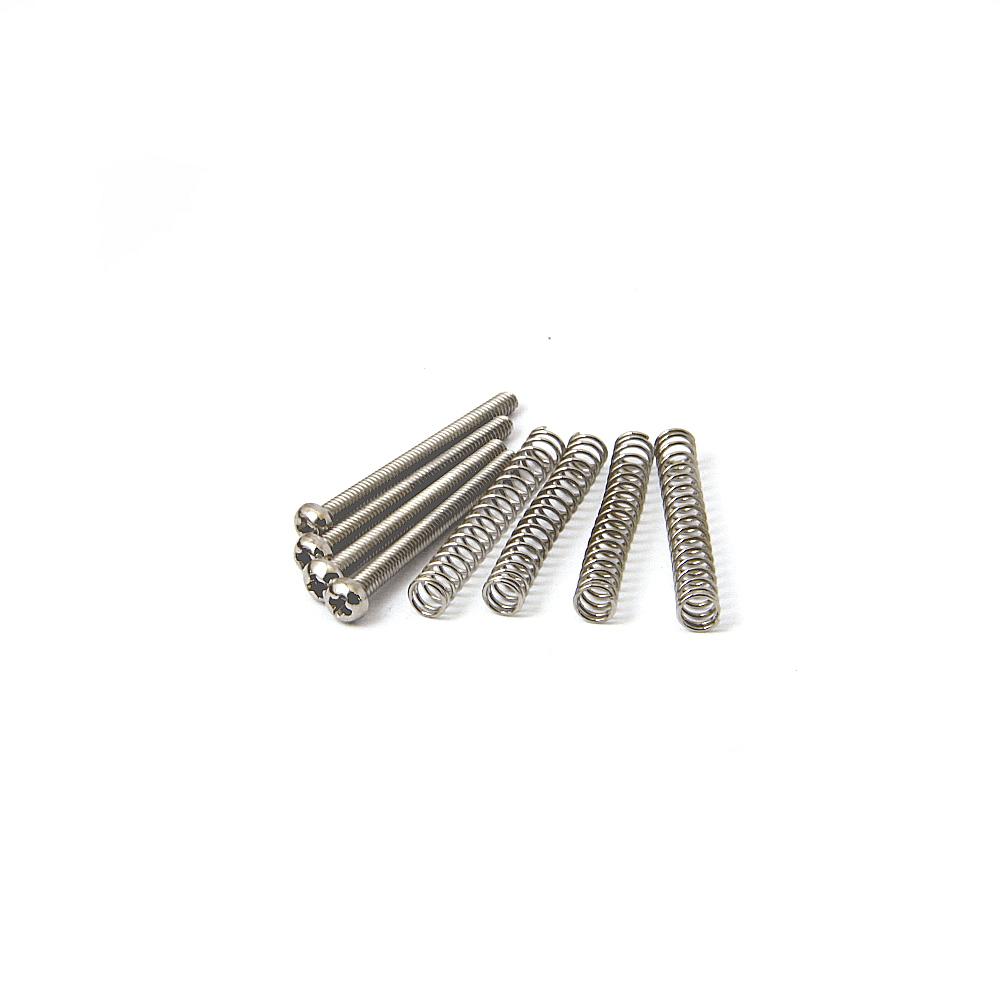

• MOUNTING SCREWS AND SPRINGS: Included (30mm)

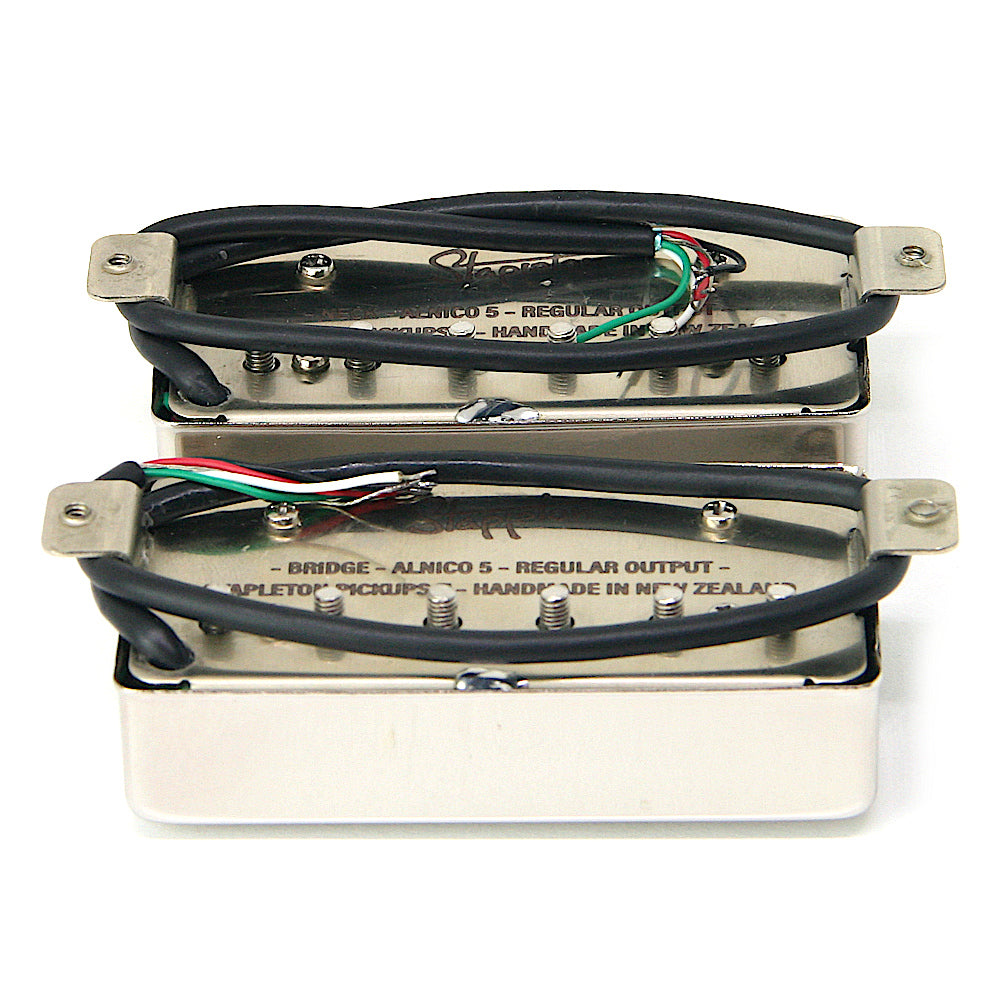

• NECK HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)
• BRIDGE HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)

* DC Resistance and inductance can differ within 5%.

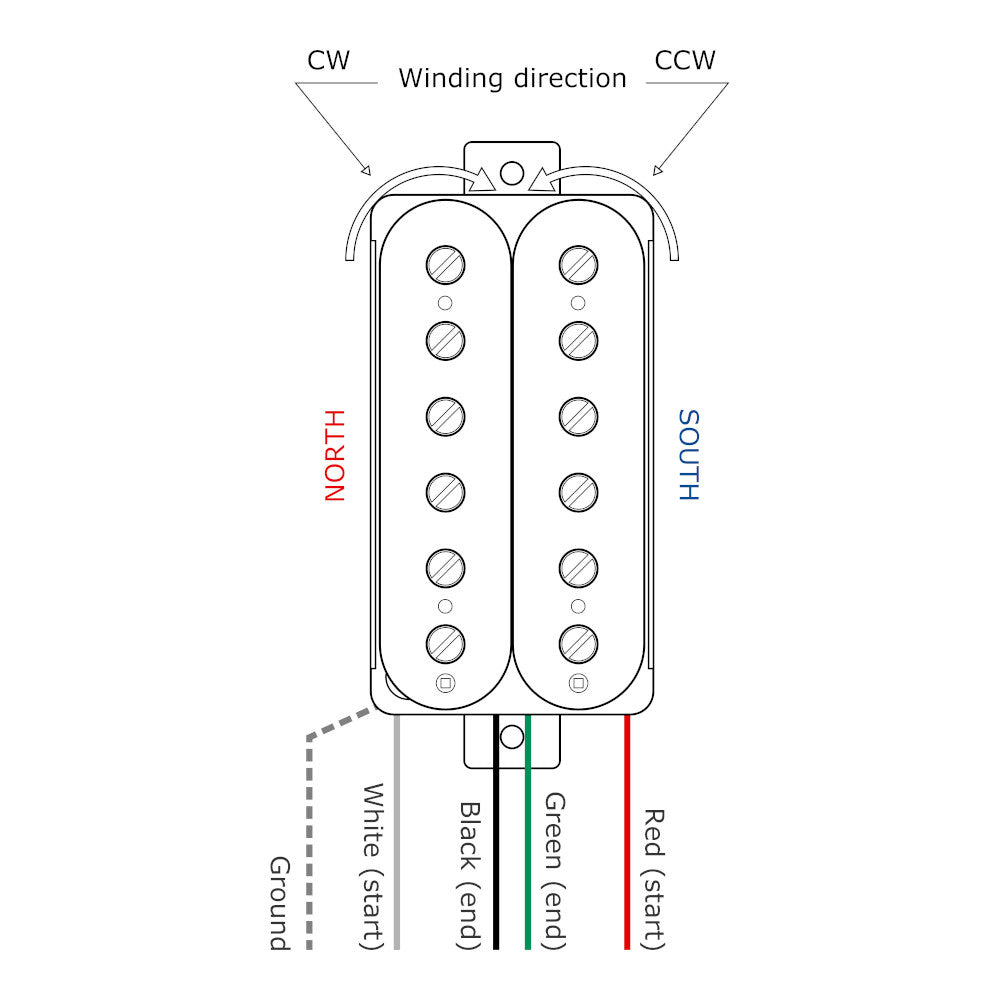

** For series wiring, connect WHITE and GREEN wires.
